SMART Controller Specifications

General Specifications


Attribute	Value	Notes
Hardware Model	OnLogic K300-E3930-4P-P
Housing Dimensions	6.3 × 4.7 × 2.2 in. (160 × 119 × 56 mm)
Weight	3.0 lb. (1.36 kg)
Mounting Points	6, M3 × 0.5 mounting points, 4.0 mm maximum insertion depth
Operating Temperature	-4°F to 158°F (-20°C to 70°C)
USB Connectivity	4x USB 3.0 Type A	For external storage, keyboard
Ethernet Connectivity	1x GbE 2x GbE Power over Ethernet (PoE)
Power over Ethernet Standard	IEEE 802.3af (PoE Type 1) Class 0
Wi-Fi Connectivity	Dual-antenna, 802.11ac
Cellular Connectivity	Option for 4G LTE
Display Connectivity	2x DisplayPort
Serial Connectivity	2x DB-9 Supports RS-232/422/485
Power Connectivity	9-36 V DC 3-pin connector (Dinkle PN: 2ESDVM-03P)
Programmable Digital I/O	4x In 4x Out Separate power and ground	8-bit, optically isolated
Grounding Features	1x Grounding Nut
CAN Bus	3-pin CAN bus 2.0B
Internal Storage	64 GB M.2 SATA SSD (approximately 48 GB free)	Options up to 1 TB
Processor	2-core Intel Atom x5-E930	Option for 4-core Intel Atom x7-E950
RAM	4 GB	Option for 8 GB

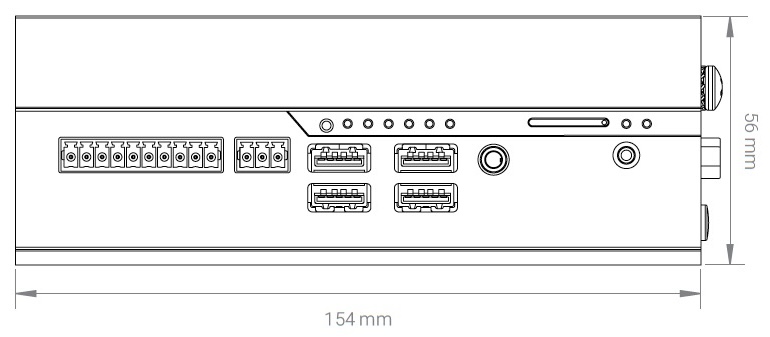

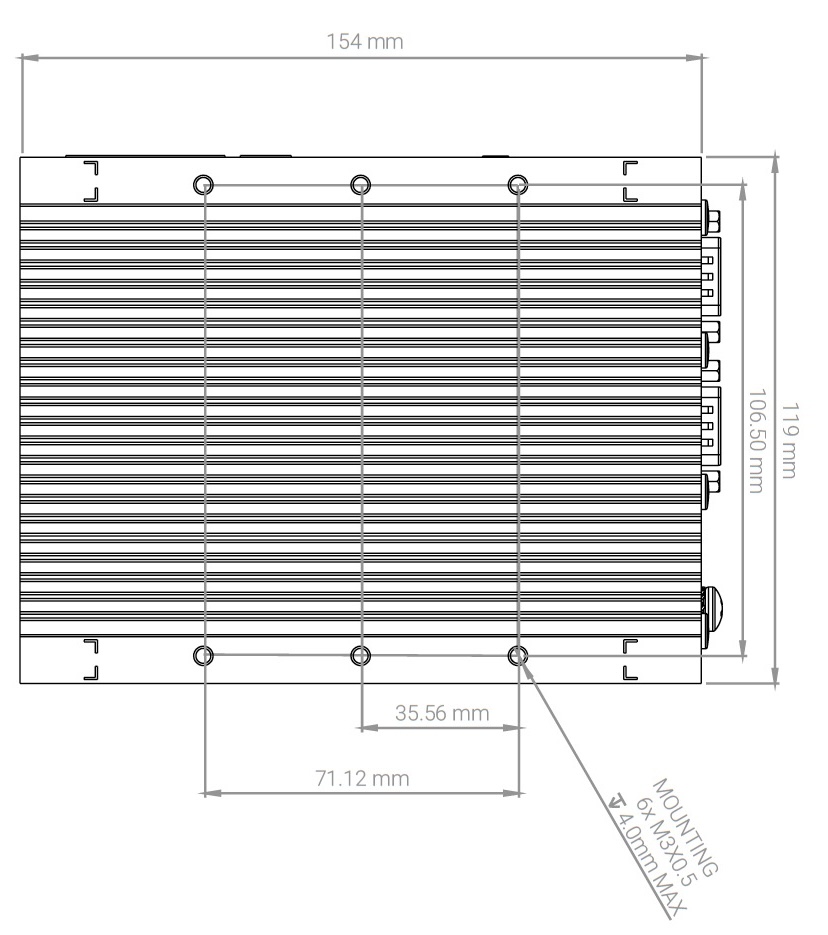

Along each edge of the bottom face are three M3×0.5 mounting holes, spaced 35.56 mm center-to-center. The two rows of mounting holes are spaced 106.50 mm apart, center-to-center. For all other measurements, see General Specifications. — Figure 1. SMART Controller Dimensional Drawings, with Mounting Points

Figure 1. SMART Controller Dimensional Drawings, with Mounting Points

Power Requirements and Consumption

Table 1. SMART Controller Voltage Limits
Nominal operating voltage (Rated DC value of input)	9~36 V
Undervoltage protection trip DC level (system turns off)	8.1 V
Overvoltage protection trip DC level (system turns off)	42.5 V
Maximum safe DC voltage (system not damaged)	50 V
Minimum safe reverse voltage (system not damaged)	-40 V
Ignition pin safe working voltage range (system not damaged)	-20~50 V

Table 2. Total Power Consumption by Microphone Count and ActivityThis table shows the power consumption of the entire SMART System based on the number of active microphones and whether the microphones' heaters are active. The power consumption measurements shown here are approximate and will vary on factors such as attached peripherals, CPU load, and system configuration.
Activity	No Mics	One Mic	Two Mics	Three Mics
Powered down	0.6 W	0.6 W	0.6 W	0.6 W
Idle, powering mics via PoE	6.4 W	8.4 W	10.4 W	N/A
Analyzing and/or recording audio	N/A	9.5 W	12.2 W	14.5 W¹
Analyzing and/or recording audio with heating elements active	N/A	15.2 W	23.6 W	31.6 W¹

¹ Does not include power for necessary PoE switch.
